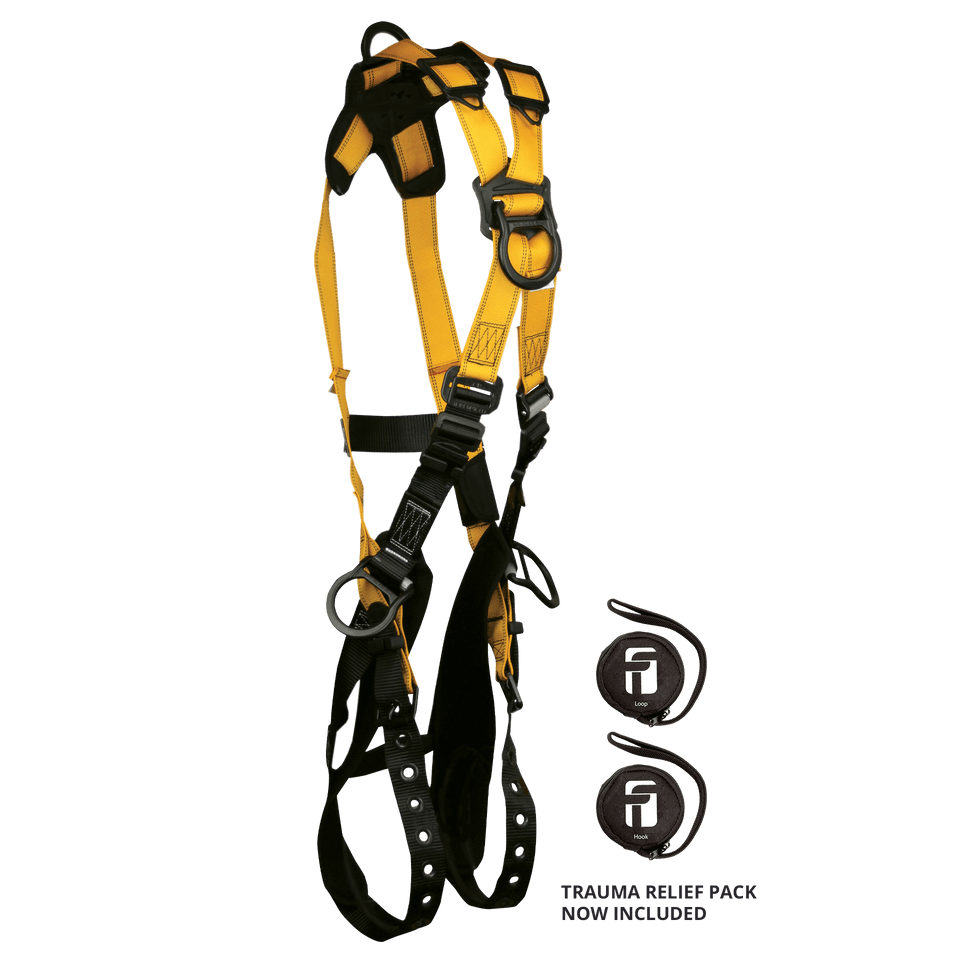

FallTech Journeyman Flex Aluminum 4D Cross-Over Climbing Full Body Harness

This Full Body Harness (FBH) comprises the Body Wear component of your Personal Fall Arrest System (PFAS). When properly worn and utilized, a FallTech FBH will allow the user to work safely and comfortably. A FBH is part of a PFAS requiring a properly rated anchorage and anchorage connector that uses a compatible connecting device appropriate for the fall protection application.

Features

• Features integral vented and padded dorsal keeper and hip-to-seat leg pads to provide advanced breathable user comfort
• Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs
• Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit
• Features lightweight forged aluminum alloy dorsal, hip sternal D-rings
• Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
• Also includes alloy steel mating buckle torso adjuster
• Includes fully adjustable suspension trauma relief system

Specification

• Brand: FallTech
• Product Type: Full Body Harness
• Size: UniFit (S, M, L)
• Webbing Material: Polyester; 5,000 lb minimum static strength
• D-Ring Material: Plated alloy steel; 5,000 lb minimum static strength
• Buckles and Adjusters Material: Plated alloy steel; 3,372 lb minimum static strength
• Minimum Static Strength: 3,600 lb
• Maximum ANSI User Capacity: 130 to 310 lb
• Maximum OSHA User Capacity: 130 to 425 lb
• Compliant With: ANSI Z359.11-2014, CSA Z259.10-2018, OSHA 1926.502 and 1910.66
