Bosch 18V REVOLVE4000 Self-Leveling Horizontal/Vertical Rotary Laser Kit with 4Ah Battery
- Regular price
- $2,149.00
The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch Core18V 4 Ah battery, providing extended runtime. The rotary laser is compatible with 4 Ah and 8 Ah Bosch Core18V Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16" at 100' in horizontal applications and ±1/8" at 100' in vertical mode, and a range of up to 4,000' with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case.
Features

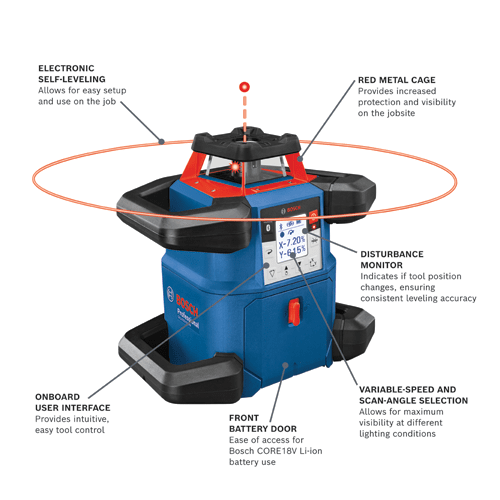

- Fully featured rotary laser – Has Dual Dial-In Slope, Core18V power, Bluetooth connectivity, uCAL user-calibration and more
- Dual Dial-In Slope – Allows slope angle adjustment on both the X and Y axes

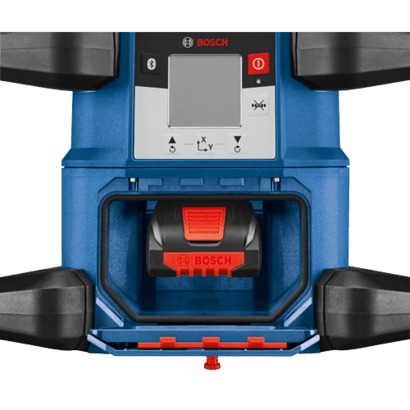

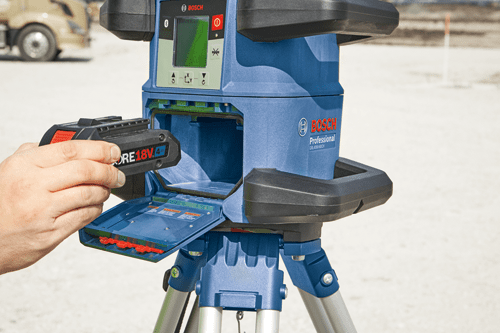

- Dual power source – For extended runtime and option of a 4 Ah Core18V battery or a battery adapter with four (D) cell batteries
- Durable design – Engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth connectivity – Connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – User-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – Range of up to 4,000' with laser receiver, the laser accuracy of up to ±1/16" at 100' in horizontal mode and ±1/8" at 100' in vertical mode
- Vertical-beam functionality – Provides a vertical beam at 90° point for layout, squaring and plumb applications
- Electronic self-leveling – Allows for easy setup and use on the job

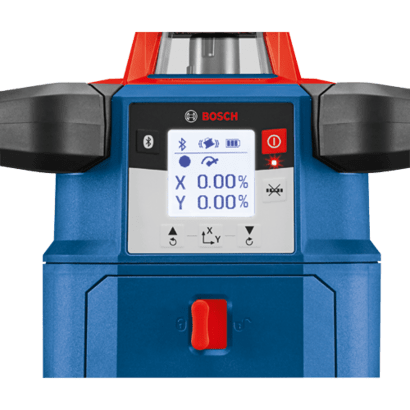

- Disturbance monitor – Indicates if tool position changes, ensuring consistent leveling accuracy
- Variable-speed and scan-angle selection – Allows for maximum visibility at different lighting conditions
- Comprehensive kit – Includes a remote control, 18V 4.Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
- AMPShare System – Designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare brands
Works with
- Laser Receivers
- LR40, Tripods
- BT160, BT170HD, BT300HD
- Grade Rods, GR500, GR16
- Batteries, GBA18V40, GBA18V80
- Chargers, GAL18V-40, GAL18V-160C
- GAL18V6-80, BC1880, GAX1218V30
Specification
- Brand: Bosch
- Product Type: Rotary Laser Kit
- Battery: Lithium-Ion Battery
- Height: 11"
- IP Rating: IP 68
- Laser Beam Color: Red
- Laser Diode: 635 nm, < 1mW
- Length: 12.8"
- Leveling Type: Self-Leveling, Up to 5°
- Material: Plastic Composite
- Mount Threading: 5/8"-11"
- Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
- Range: Up to 4,000'
- Weight: 8.2 lb
- Width: 7.4"
- Warranty: 1 Year Tool; 3 Year Battery; 5 Year Charger Limited

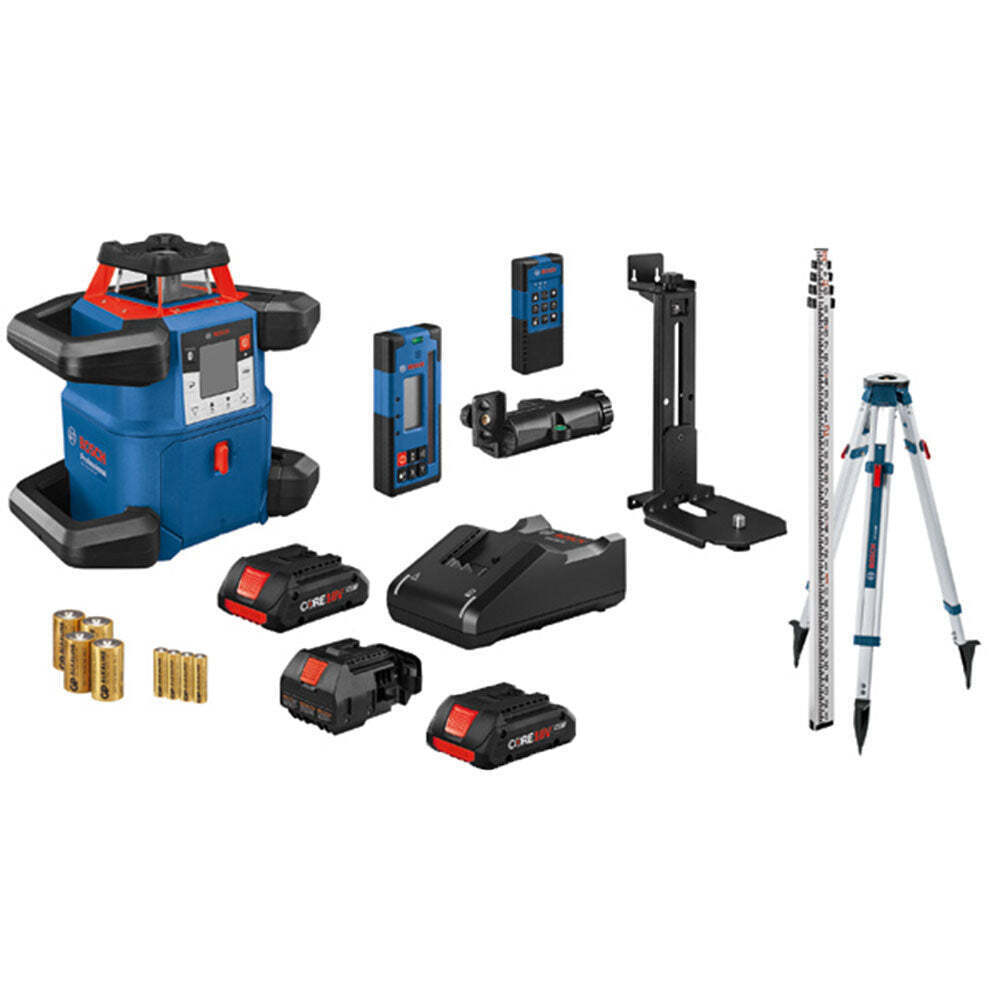

Includes

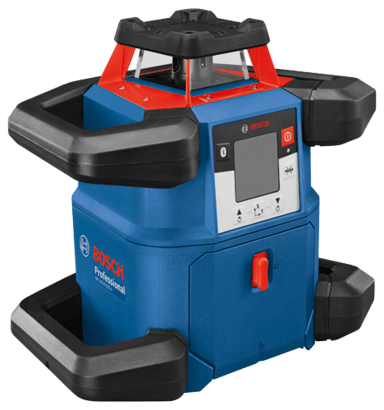

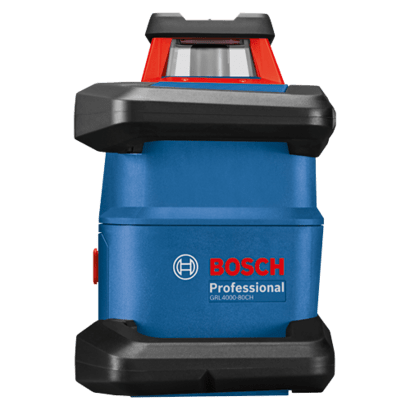

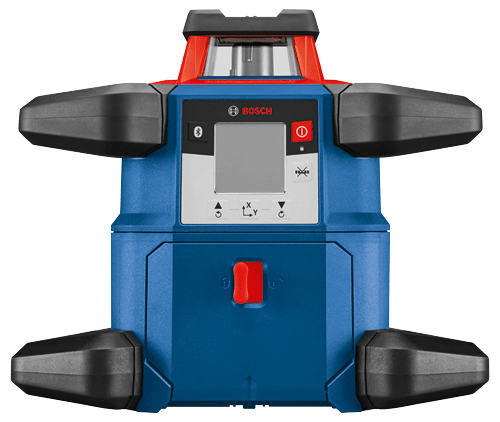

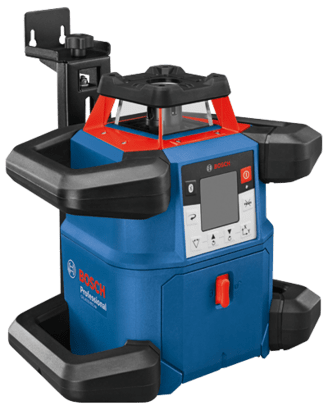

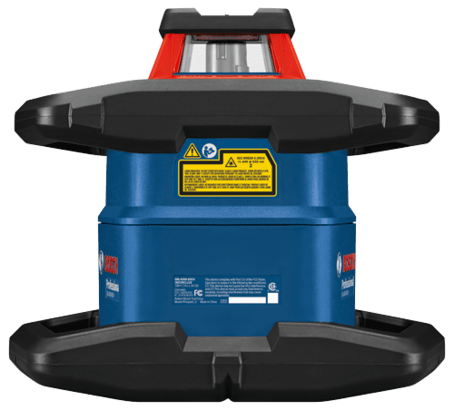

- GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser x 1

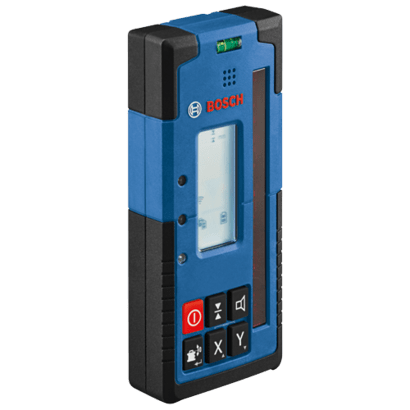

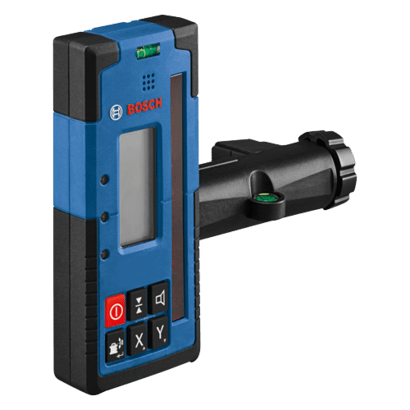

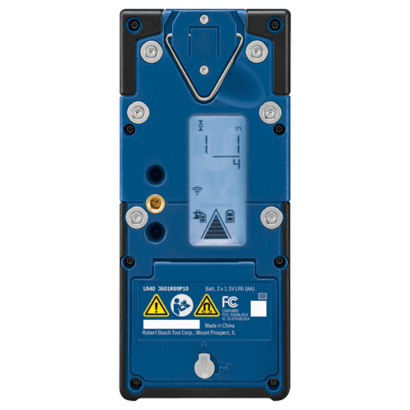

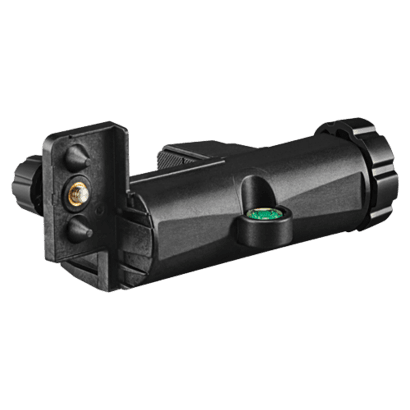

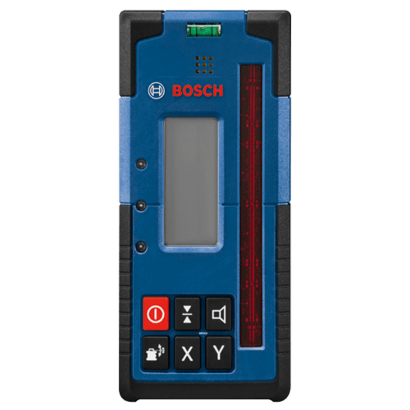

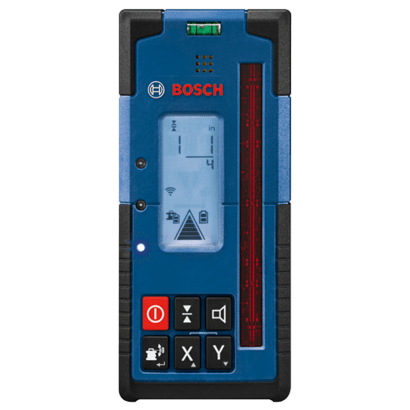

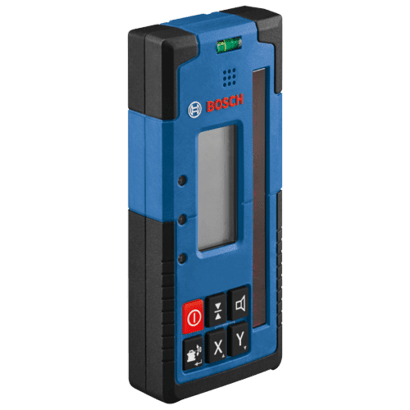

- LR40 Laser Receiver with Bracket x 1

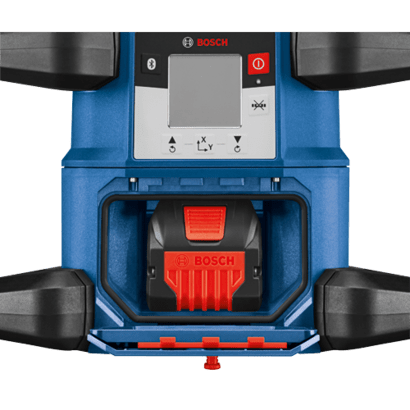

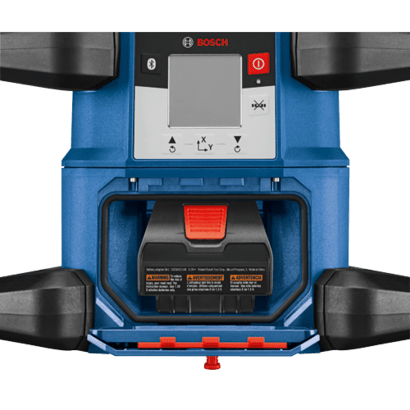

- GBA18V40 18V CORE18V Lithium-Ion 4 Ah Advanced Power Battery x 1
- 18V Battery Charger x 1

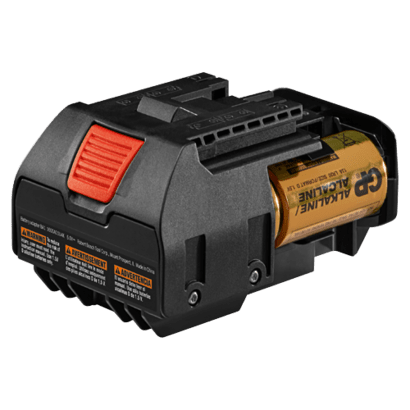

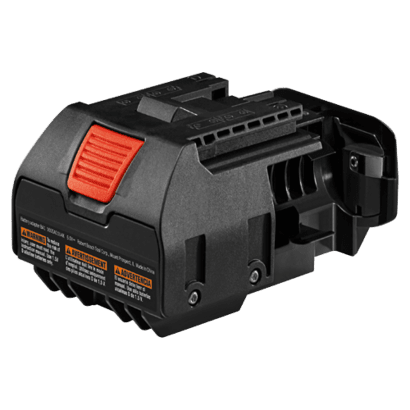

- BA1 Alkaline Battery Adapter x 1
- D Batteries x 4
- AA Batteries x 4
- BT170 Heavy-Duty Aluminum Tripod x 1

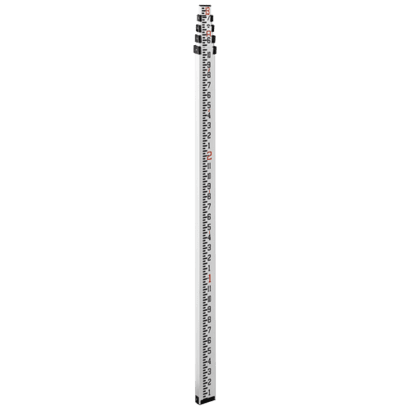

- GR13 13' Grade Rod x 1

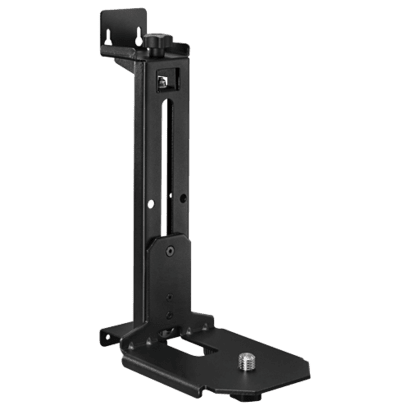

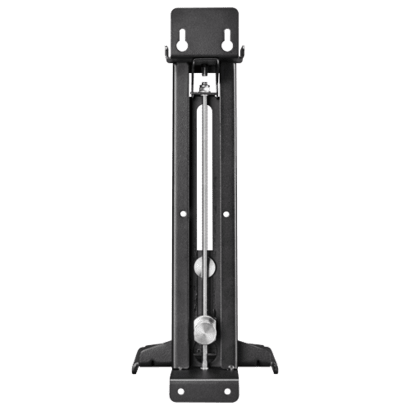

- WM6 Wall Mount x 1

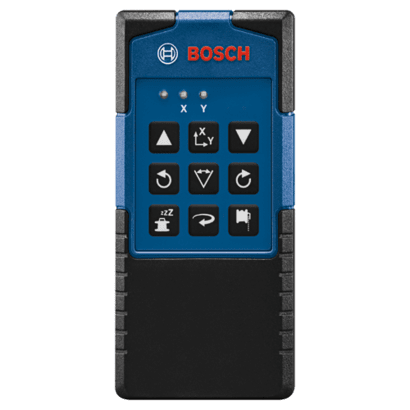

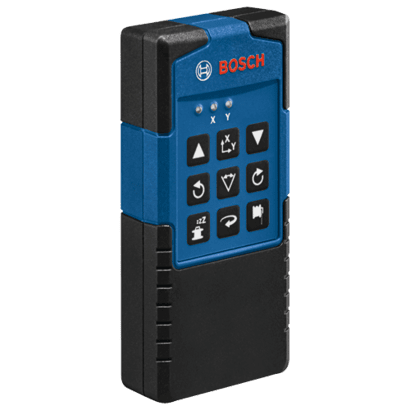

- RC5 Remote Control x 1
- Carrying Case x 1
Downloads
- Regular price
- $2,149.00
![Bosch GRL4000-80CHVK 18V Self-leveling rotary laser kit](http://www.mcsales.com/cdn/shop/files/RL4000-80CHVK.jpg?v=1712134187&width=1000)
![Bosch GRL4000-80CHVK diagram](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_1_1e7912ee-6f20-4e52-bc9a-d60fe440d3f5.png?v=1712134187&width=500)

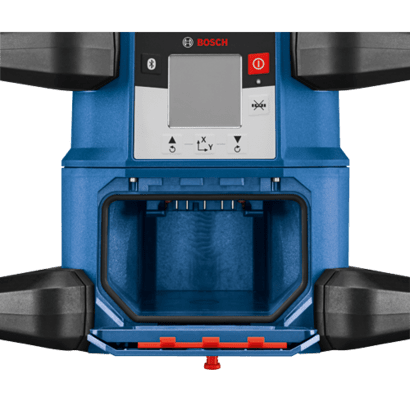

![Bosch GRL4000-80CHVK battery door](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_6_e7982889-0a63-428e-a7b9-7d046d5e8854.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK disturbance monitor](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_12_21ca90ef-f5ac-42c3-9307-515db8549449.png?v=1712134187&width=410)

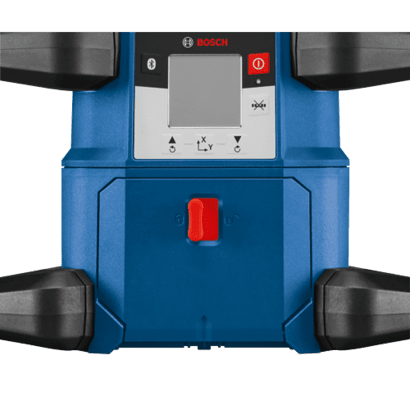

![Bosch GRL4000-80CHVK front view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_5_7b38cdac-4c3d-41bd-a64d-5a524b6c84c6.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK front view with battery](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_4_59f6cb1b-3251-4f0d-a63d-771c6730a57f.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK front view with battery](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_3_be685db3-6fd6-4a1c-9fac-136dbecfe7b3.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK front view with battery](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_2_fd33fa8d-db31-4d02-9700-0443ae85fd3e.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK stand](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_28_ddb12c84-c8de-4850-b5fa-44fcfa7ebc18.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK ruler](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_27_4bbc85e0-697c-447e-b734-1edad2cc4255.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK remote](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_25_c2714bd0-24eb-48f0-b1a6-cb9a182cac86.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK side view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_24_5c790a64-512c-404d-ae81-667f88e7c084.png?v=1712134187&width=328)
![Bosch GRL4000-80CHVK battery](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_22_2550ec7c-9bb8-47e4-b0bd-b4b41ad533ca.png?v=1712134187&width=410)

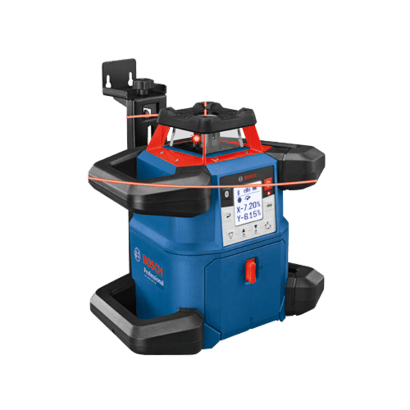

![Bosch GRL4000-80CHVK side view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_23_1733efd7-f6be-4576-b87e-f820584eda76.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK battery](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_21_7d4953ff-87c8-4f8b-8d0f-38afcbb5953f.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK rotary laser kit](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_16_cad4e17f-b779-4819-8d29-fb1d908a4266.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK measurer](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_15_645c6658-8519-42fd-ac25-3182127b5a8b.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK front view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_9_80d31e0e-8293-42e9-b98d-6fc45a5b96ce.png?v=1712134187&width=500)
![Bosch GRL4000-80CHVK measurer](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_14_7b5e2101-7e8a-420b-abc4-e6de973a58fb.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK measurer with stand](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_13_8faa0ece-89af-4f73-9251-978a963d563a.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK side view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_8_35d0b453-be87-4db3-b137-27e6b13c1680.png?v=1712134187&width=384)

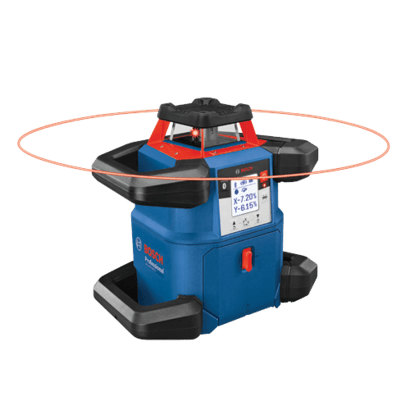

![Bosch GRL4000-80CHVK laser](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_7_583861b9-05bf-4bb3-b7a1-a25f01a6755a.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK stand](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_29_532077ee-b336-40df-880d-f68c079d0125.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK remote](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_26_70923bd3-59da-46ff-9121-9b38ba68178a.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK remote back view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_20_d9d68f3a-3166-45f6-af86-d1f5a2965afe.png?v=1712134187&width=410)

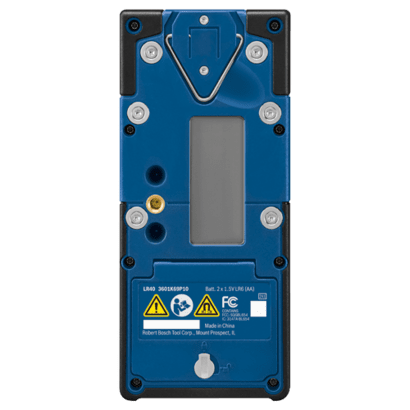

![Bosch GRL4000-80CHVK remote back view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_19_7b40c049-c330-4539-8ca0-ff38d7b0accc.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK measurer](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_18_8b6e71ac-c7aa-4612-967c-7f04be7f743f.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK measurer](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_17_f24efbae-bcd5-498e-85fc-64bc30045c15.png?v=1712134187&width=410)
![Bosch GRL4000-80CHVK back view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_11_67e6dac5-fcf5-4ef1-856d-3eaac59d4750.png?v=1712134187&width=454)
![Bosch GRL4000-80CHVK side view](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_10_8f76a19f-4c55-4c4f-9c63-59bc4beadd42.png?v=1712134187&width=410)

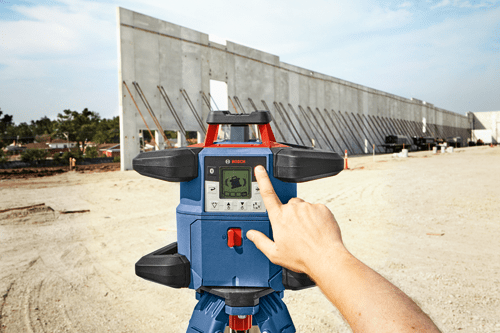

![Bosch GRL4000-80CHVK in use](http://www.mcsales.com/cdn/shop/files/GRL4000-80CHVK_30_ecb15725-3d0b-4715-97a6-77f19b21422e.png?v=1712134187&width=500)
