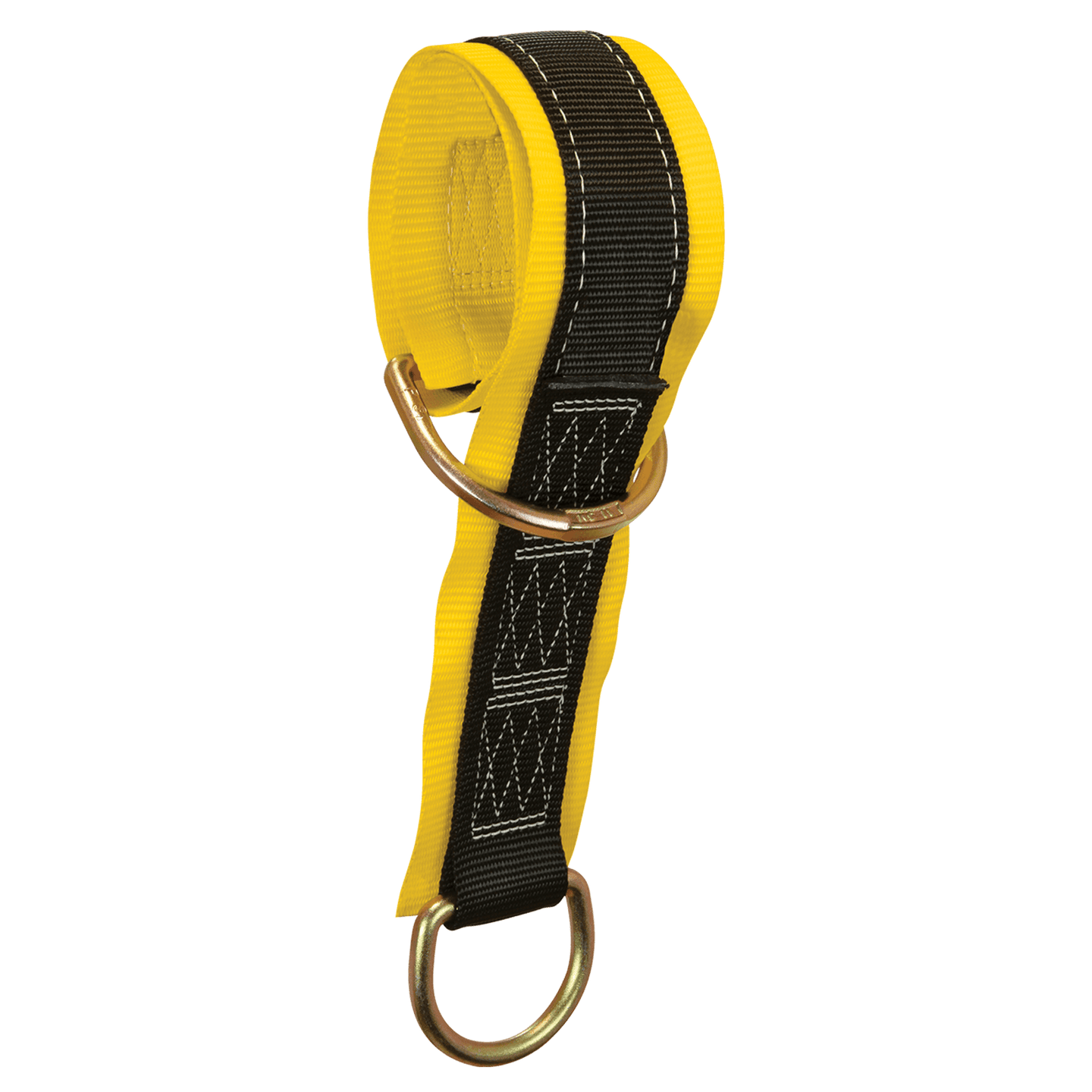

FallTech Pass-Through Choker Anchor with Heavy-Duty Wear Pad

The FallTech Pass-Through Anchors are part of a Personal Fall Arrest System (PFAS) and come in four different styles; Sling Anchors, Choker Sling Anchors, Cable Pass-Through Sling Anchors, and Cable Carabiner Sling Anchors. When properly employed the FallTech Anchors will allow the user to safely anchor to I-Beams and other constructs. The Pass-Through Sling Anchors, Choker Sling Anchors, Cable Pass-Through Sling Anchors are part of a PFAS requiring a compatible connector or device connected to the dorsal connection point on a Full Body Harness (FBH).

Features

• Features 1-3/4" load-bearing web with 3" wide full-length wear pad for abrasion resistance
• Appropriately sized alloy steel D-rings provide simple pass-through choke-on installation
• May be passed-through multiple times to shorten length
• Smaller D-ring facilitates connection point for SRLs and lanyards
• Each D-ring termination features three individual 2" box-stitches for longer life

Specification

• Brand: FallTech
• Product Type: Choker Anchor
• Webbing Material: Polyester; 5,000 lb minimum static strength
• D-Rings Material: Plated alloy steel; 5,000 lb minimum static strength
• Wear Pad Material: 3" Polyester webbing
• Minimum Static Strength: 5,000 lb
• Maximum ANSI User Capacity: 136 to 310 lb
• Maximum OSHA User Capacity: 130 to 425 lb
• Compliant With: CSA Z259.15-2017, OSHA 1926.502 and 1910.66 ANSI Z359.18-2017
