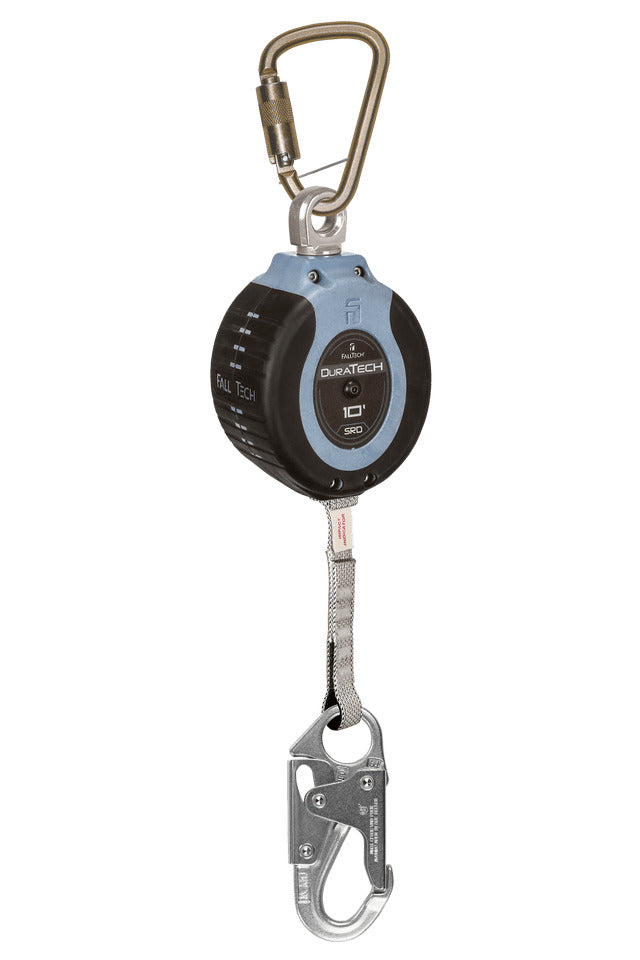

FallTech 10' DuraTech Web SRL with Steel Snap Hook

The FallTech 10' DuraTech Web SRD is a self-retracting lifeline for those working at height. At the top of the unit, a swiveling aluminum eye provides an attachment point for a self-closing and self-locking connector. The SRD body consists of a glass-filled nylon housing that contains a 10' length of high performance polyethylene and polyester fiber webbing wound onto a spring-tensioned drum. The leg end of the webbing may be configured with a variety of sewn-on connectors. A stitched fold in the lifeline functions as a retraction stop and a load indicator.

Features

• Compact size is simple to install and relocate as worksite changes require
• Dyneema web lifeline resists abrasion while providing trusted strength
• Overmolded glass-filled nylon housing contributes unmatched impact resistance
• Internal inertial braking system provides smooth deceleration with minimal fall forces
• Integrated aluminum alloy swivel-eye helps to prevent lifeline twisting for smooth operation
• Features alloy steel snap hook lifeline connector
• Includes alloy steel anchorage carabiner

Specification

• Brand: FallTech
• Product Type: Web Self-Retracting Lifeline (SRL)
• Webbing Material: Dyneema/Polyester blend; 4,500 lb minimum
• Life Line Connector Material: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Anchorage Connector Material: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Minimum Static Strength: 3,000 lb
• ANSI SRL Class: Class B
• Average Arrest Force: 900 lb
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 54"
• Maximum ANSI User Capacity: 130 to 310 lb
• Maximum OSHA User Capacity: 130 to 310 lb
• Compliant With: ANSI Z359.14-2014, OSHA 1926.502 and 1910.66 and CSA Z259.2.2-2017
